Plug power supplies 12W

Accessories

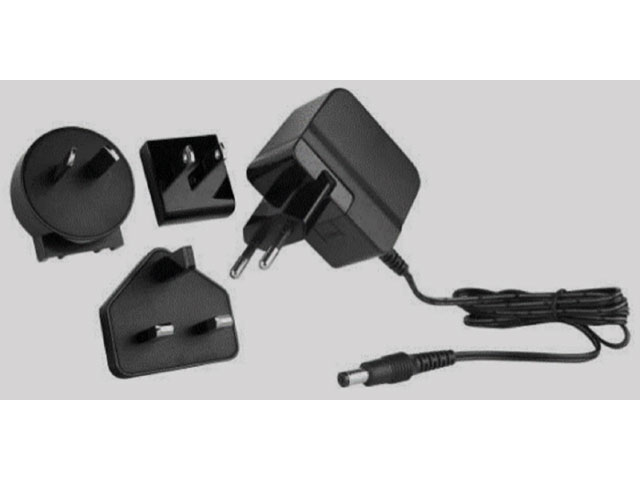

The plug-in power supplies with 12W output power are used for simple and cost-effective power supply of individual readers of different types at existing sockets. Different plug types, both on the input and output side, are available to suit the respective application.

Please scroll or swipe to view more contents of the table below.

Article number E > Euro (fixed) Article number M > MultiadapterConnection 24V (output) For Reader Series
HRF.Z.PSE.24.12.10HRF.Z.PSM.24.12.00Flying wiresHFM 6x, LFM 4x
HRF.Z.PSE.24.12.11 HRF.Z.PSM.24.12.01Phoenix MSTB 2-PINHFM 6x
HRF.Z.PSE.24.12.12 HRF.Z.PSM.24.12.02M12 female 5-PIN A-coded (M12 plug female, A-coded)LFM-LP
HRF.Z.PSE.24.12.13 HRF.Z.PSM.24.12.03Phoenix MSTB 3-PINLFM 4x
HRF.Z.PSE.24.12.14 HRF.Z.PSM.24.12.04M8 socket HFM WIP RACK

  • Technology

    DC plug-in power supply with 24V output voltage

  • Components

    • Molded cable (standard length 1.5m)
    • Different connector types (input and output side)
    • Compatible with HFM 6x, HFM WIP RACK, LFM 4x, LFM LP, UFM 5x …

  • Features

    • Compact plug-in power supply with small dimensions
    • Permanently connected cable with approx. 1.5m length
    • Wide range input for universal application
    • Environmentally friendly “Energiy efficiency Level VI” and only 0.075W in standby (Euro)
    • Short circuit proof, overload and overvoltage proof
    • Different output connector types suitable for all HERMOS readers

There are no downloads available for this product.

DesignPlug-in power supply

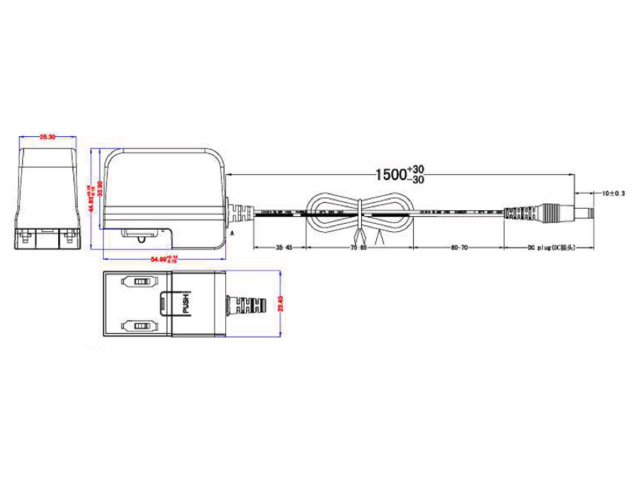

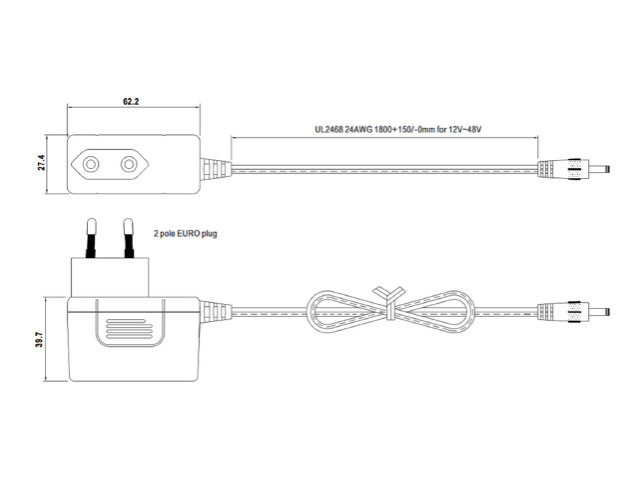

Dimensions 62.2 x 27.4 x 39.7 mm (Euro), 56 x 27 x 73 (Multi)
Cable length 1.5 m
Case materialPlastic (ABS/PMMA)
Input 90 ... 264 V AC / 47 ... 63 Hz
Output 24 V DC, 12 W
Plug type Euro/Multiplayer
Efficiency (type) 84 %
